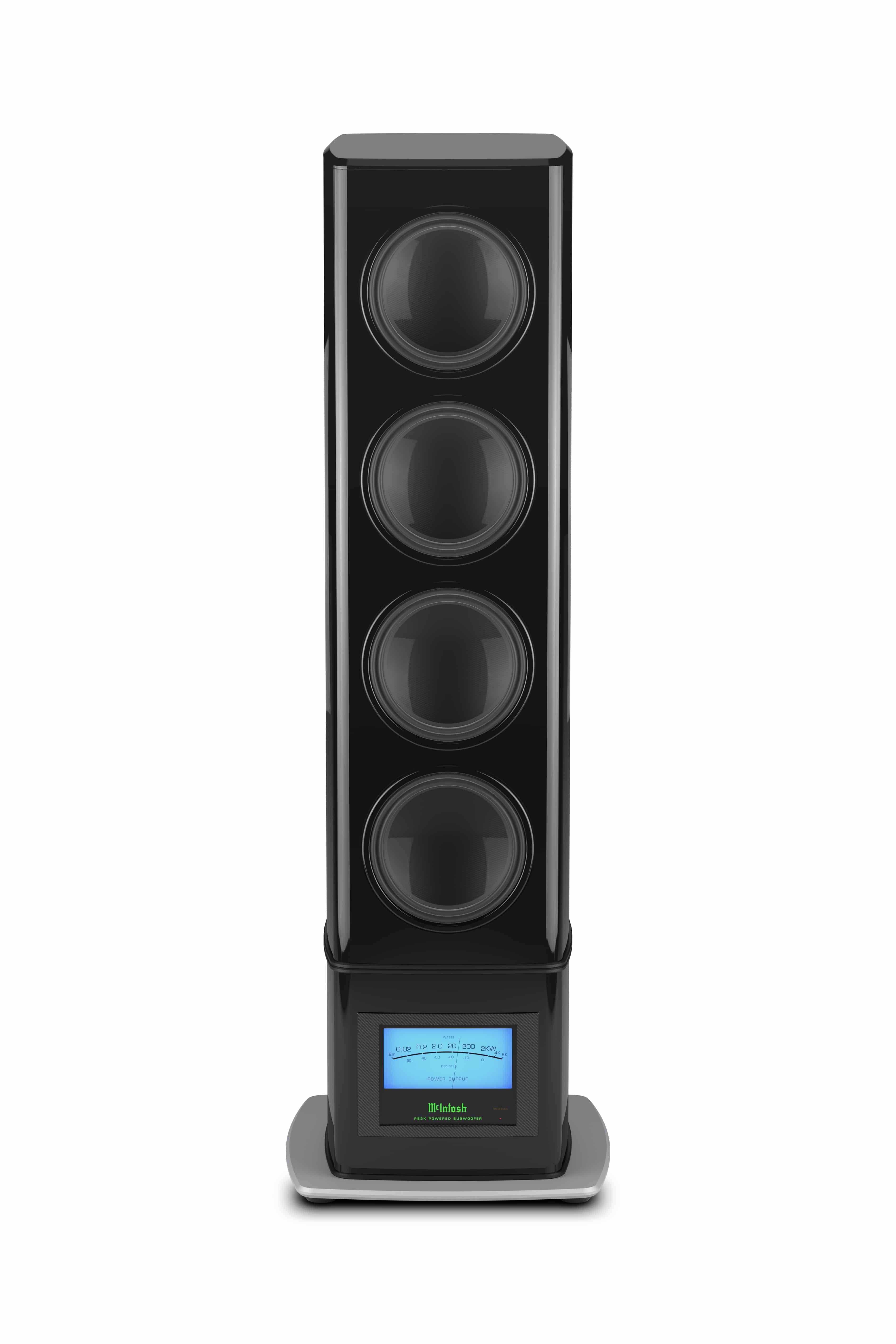

Caisson de basse McIntosh PS2K


Spécification technique du caisson de basse McIntosh PS2K
-
- Impedance Nominal 8 Ohms
-
- Power Output
- 2KW (Four 500W, one per woofer)
Maximum Output > 120 dB
-
- Frequency Response 20Hz – 250Hz (variable)
-
- Filter Frequencies
- High Pass: 40Hz – 120Hz
Low Pass: 40Hz – 120Hz
Phase: Continuously Variable
Parametric: Two band 40Hz – 100Hz, variable bandwidth and level +/- 8dB
-
- Input Sensitivity
- 1V Balanced
500mV Unbalanced (0.5V)
-
- Total Harmonic Distortion
- Amplifier: 0.07%
Preamplifier (rear panel outputs): 0.005%
-
- Voltage Gain
- Amplifier: 31dB
Preamplifier: 10dB
-
- Level Control Continuous variable available on rear panel
-
- Signal To Noise Ratio 93dB
-
- Input Impedance
- 20K Ohms Balanced
10K Ohms Unbalanced
-
- Maximum Input Signal
- 9V Balanced
4.5V Unbalanced
Driver Specifications
-
- Number of Woofers 4
-
- Woofer Size 13″
-
- Woofer Type Carbon Fiber with extra long excursion and Low Distortion High Performance (LD/HP®) Magnetic Circuit Design
Connectivity
-
- Balanced Input
- 1 Pair Stereo
1 Subwoofer (mono)
-
- Unbalanced Input
- 1 Pair Stereo
1 Subwoofer (mono)
-
- Balanced Output
- 1 Pair Stereo
1 Subwoofer (mono)
-
- Unbalanced Output
- 1 Pair Stereo
1 Subwoofer (mono)
General Specifications
-
- Enclosure Finish Highly polished Piano Black
-
- Metal Finish Anodized aluminum base High Durable powder coated plate surfaces
Weights & Dimensions
-
-
- Unit Dimensions (W x H x D)
- 19-1/4” (48.9cm) x 78-5/8” (199.7 cm) x 22-1/2” (57.2cm)
Base footprint: 25-5/16″ (64.3cm) x 28-7/16″ (21.43cm)
-
- Unit Weight
- 458 lbs (207.7kg)
-
- Shipping Weight
- 932 lbs (422.7kg)
-
Tarif The Seventh Art 60000€
